RAY Egelhof - Industrial gas burners "NBG" - series
please click on the respective picture for a complete view
RAY Egelhof - Industrial gas burners “NBG” - series are used at all kinds of firing kilns, furnaces and post combustion chambers and are suitable for firing all technical combustible gases, biogases, hydrogen, LPG and process gases.
RAY Egelhof - “NBG” - series burners are available in a capacity range from 120 kW (409 MBTU) - 5.400 kW (18,425 MBTU).
For more information, please get in contact with us - our team will be happy to support you!

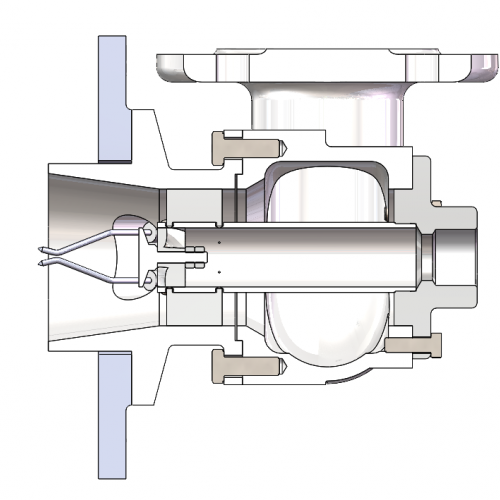

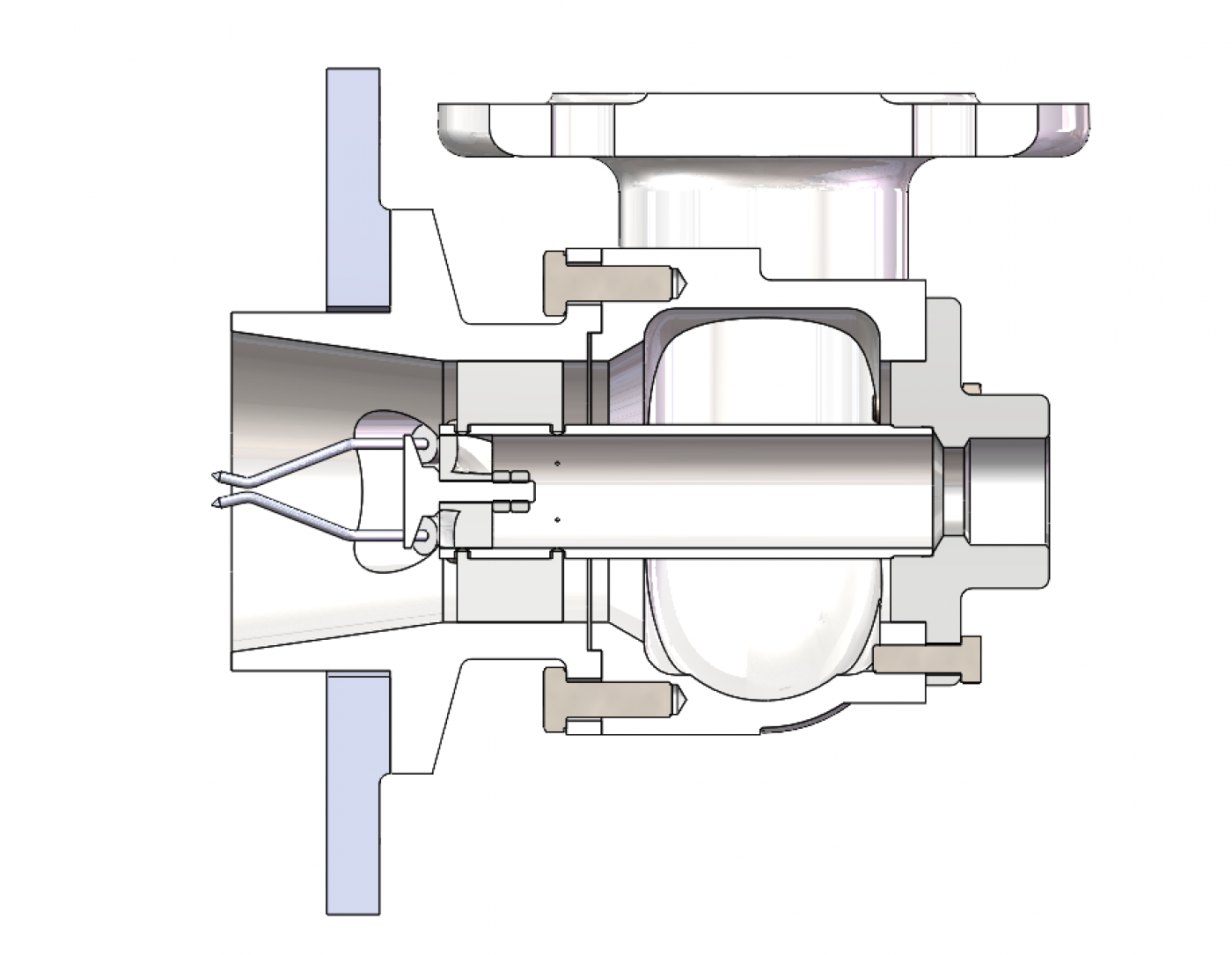

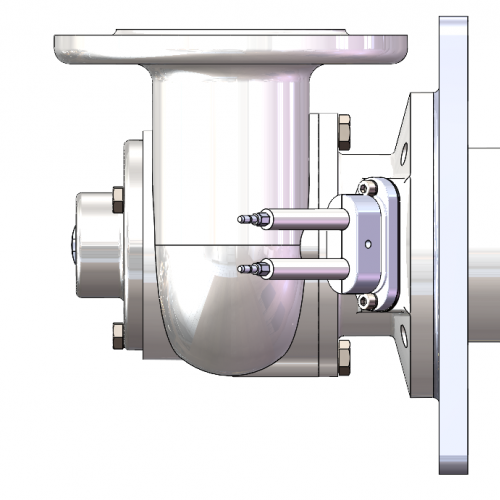

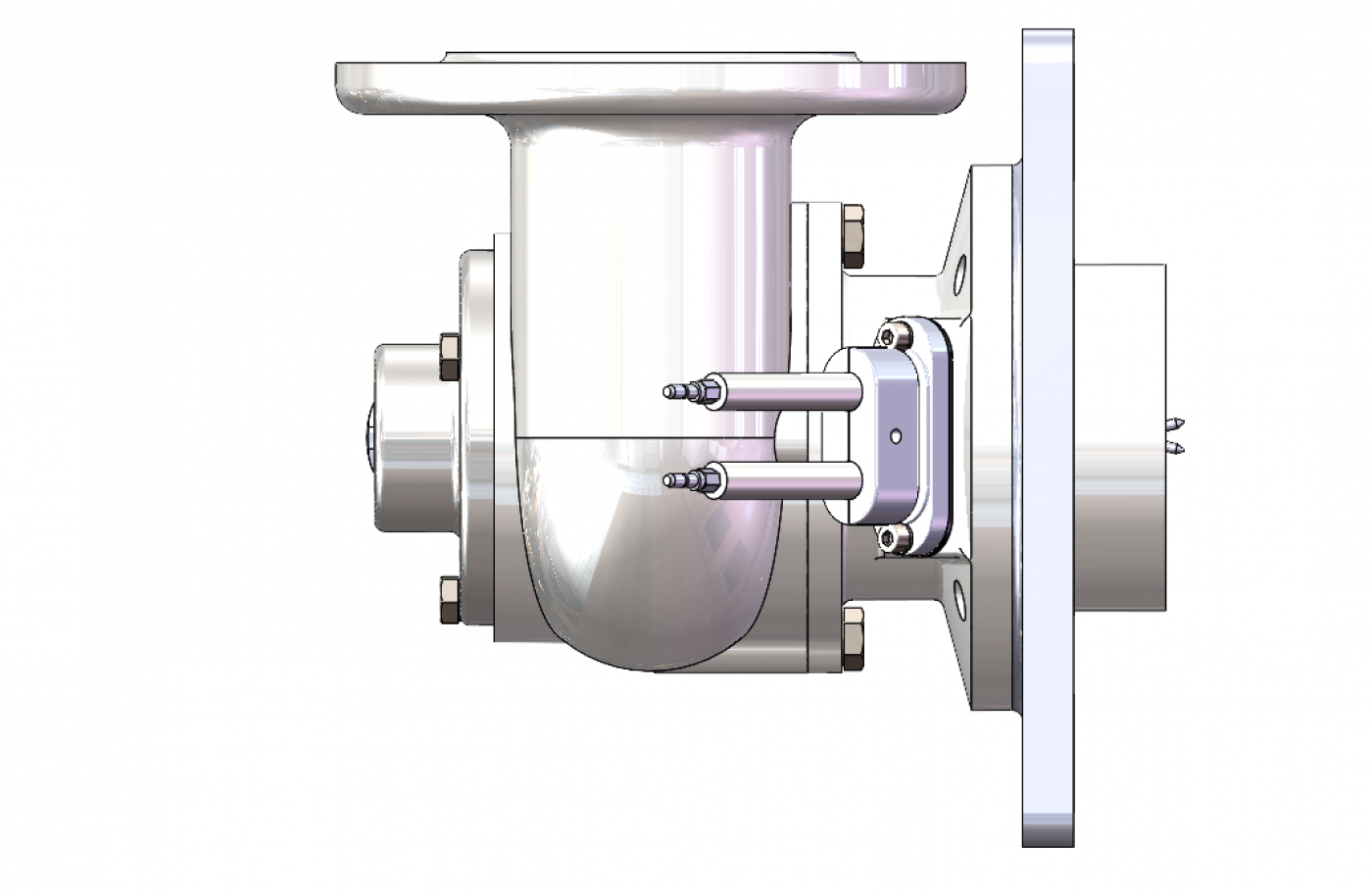

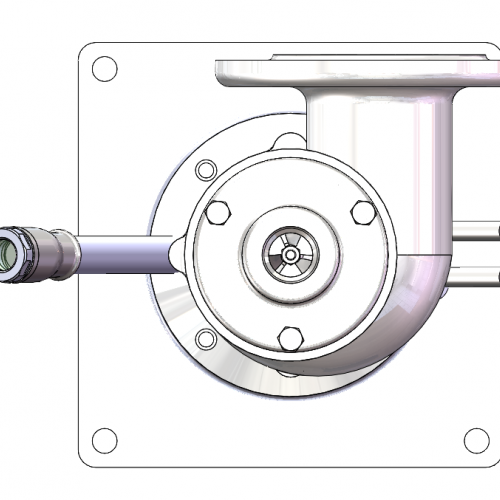

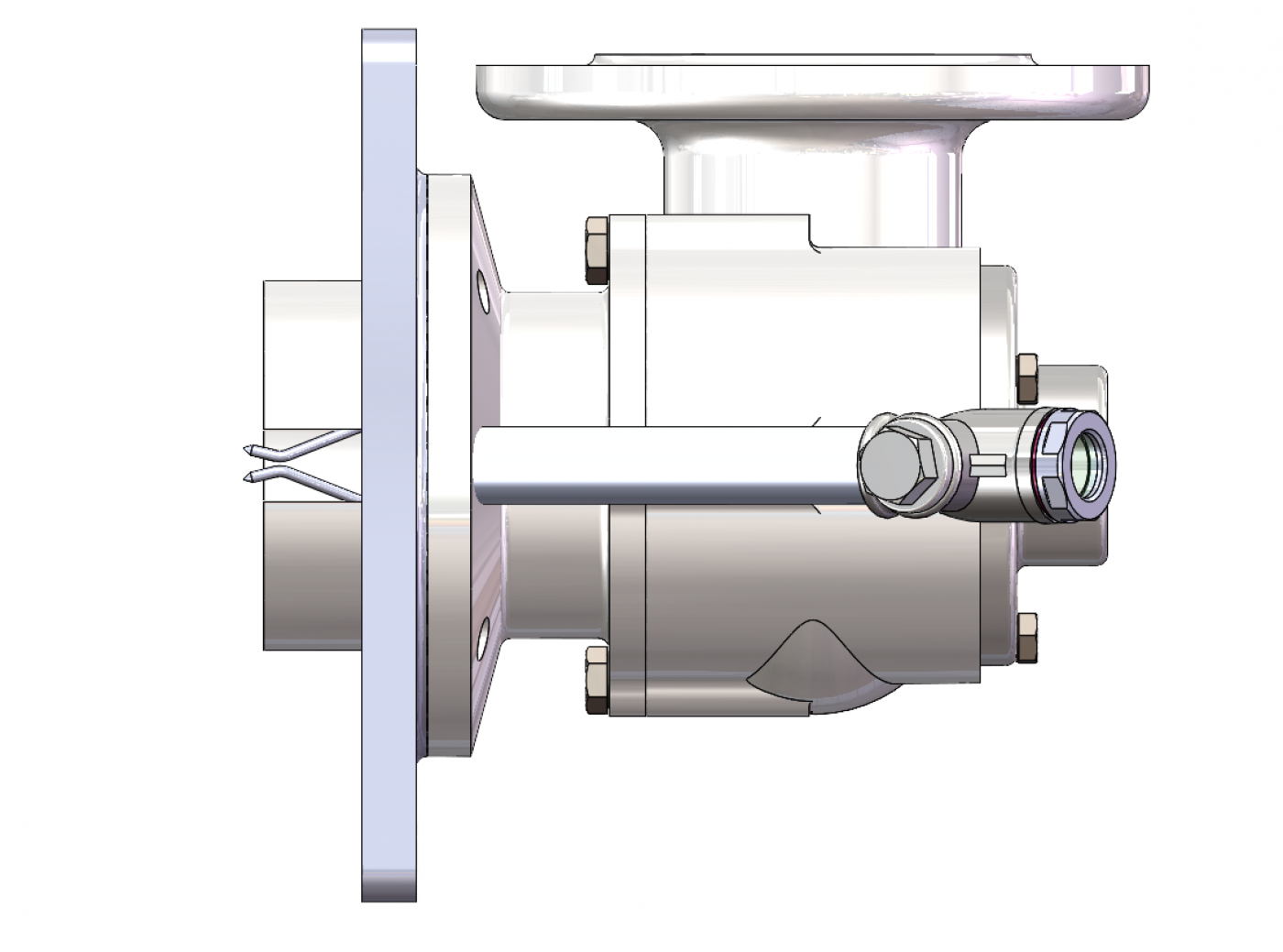

Design of the burner

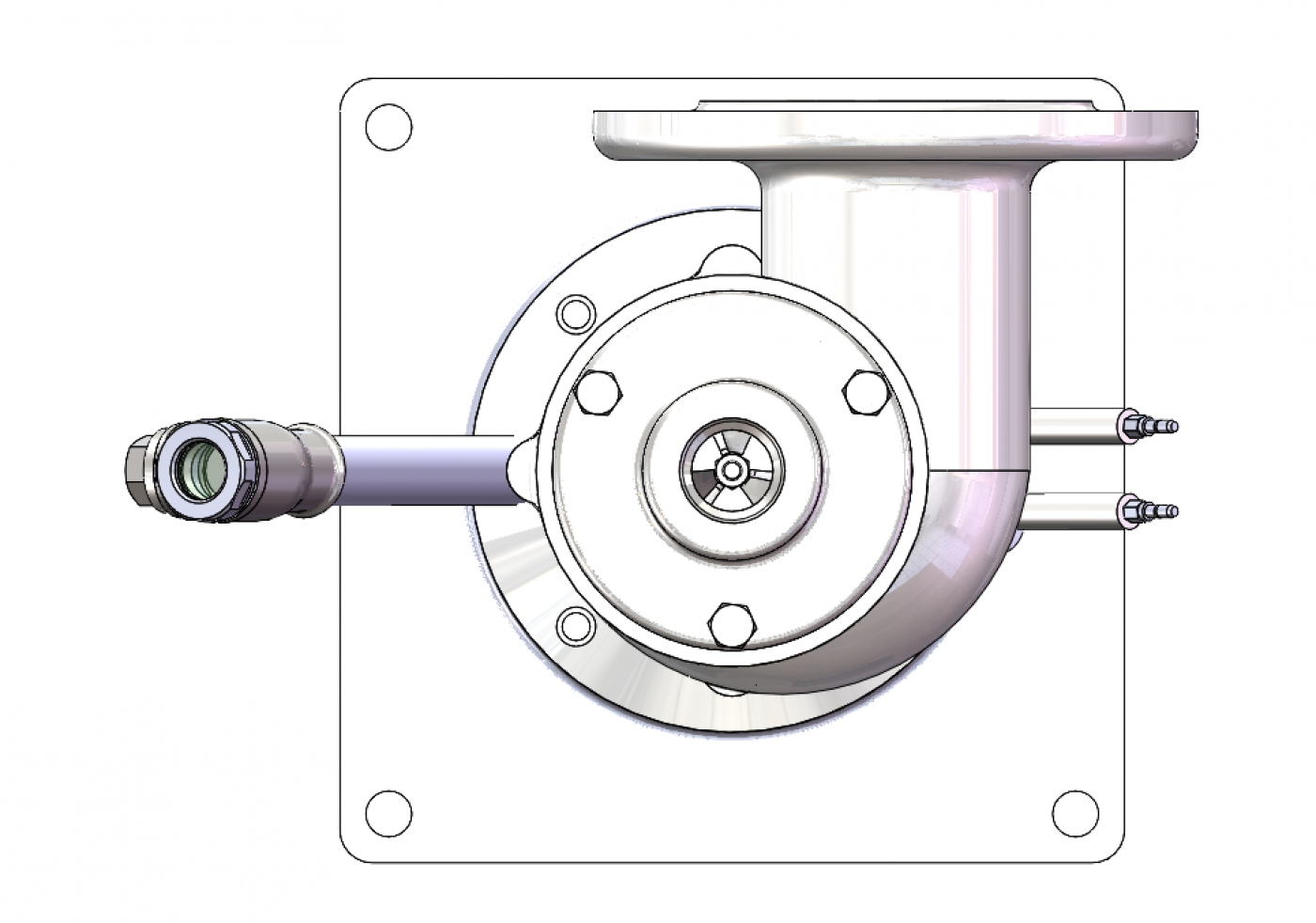

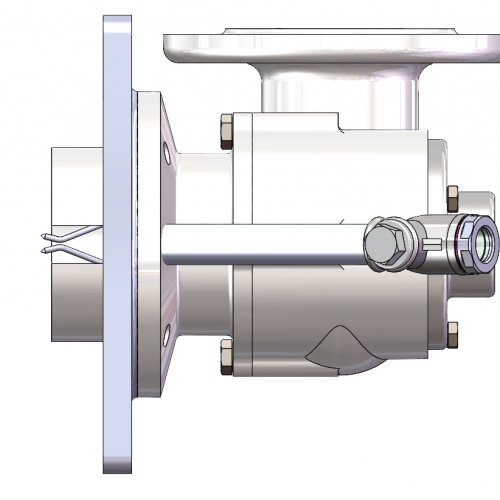

You will find the matching picture in the slider on the right!

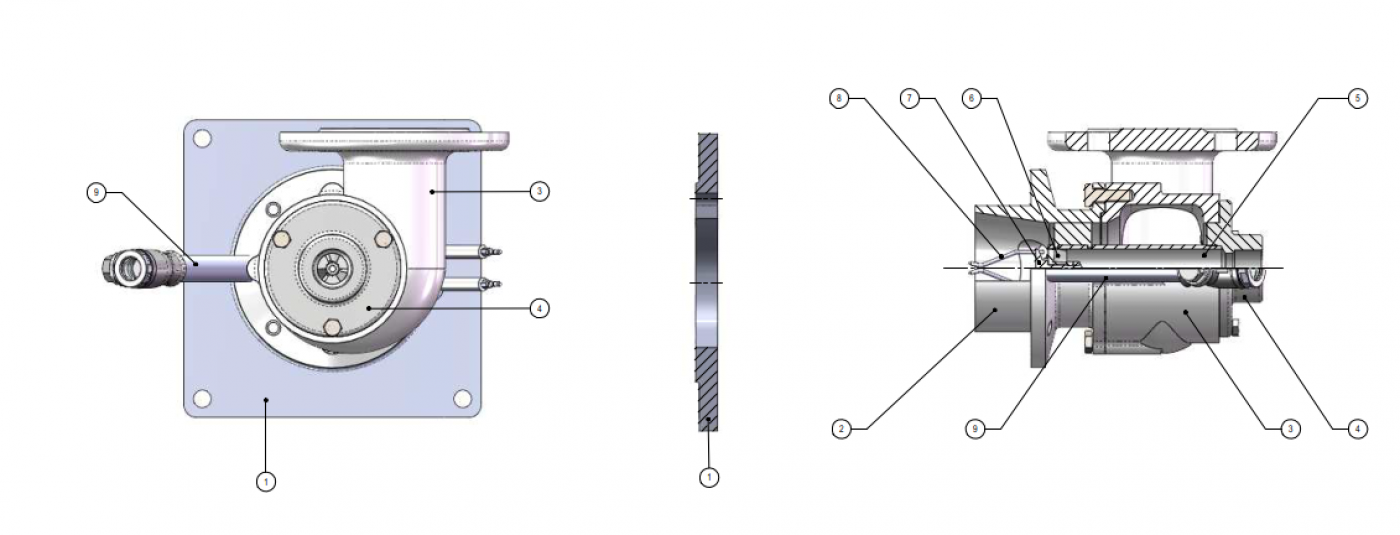

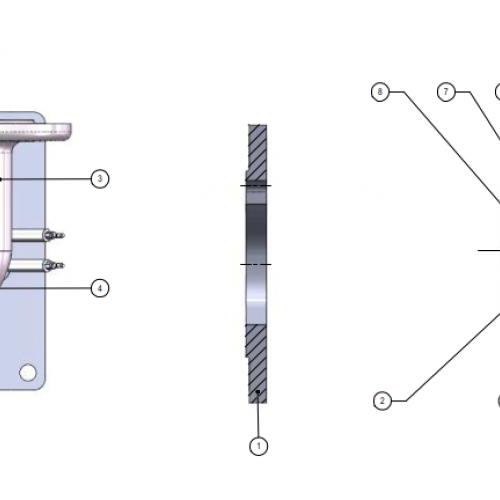

| 1. Burner plate | 2. Mounting flange |
| 3. Burner housing | 4. Gas connection flange |
| 5. Gas pipe with air baffles | 6. Gas nozzle |
| 7. Baffle plate | 8. Ignition electrodes |
| 9. Flame scanner bracket |
Operating range
Burner operating range in relation to combustion air temperature
| Burner type | 20°C | 20°C | Weight burner with burner plate |
| 100% | 100% | ||
|
kW |
MBTU | kg | |
| NBG 40 | 120 | 409 | ca. 10,2 |
| NBG 50 | 180 | 614 | ca. 17,0 |
| NBG 65 | 300 | 1,024 | ca. 17,5 |
| NBG 80 | 480 | 1,638 | ca. 28,9 |
| NBG 100 | 780 | 2,661 | ca. 35,5 |
| NBG 125 | 1200 | 4,094 | ca. 52,6 |
| NBG 150 | 1560 | 5,323 | ca. 61,2 |
| NBG 200 | 3000 | 10,236 | ca. 82,7 |
| NBG 250 | 4200 | 14,330 | * |
| NBG 300 | 5400 | 18,425 | * |
Note: Burner operating range refers to standard furnace and combustion air conditions.
