RAY Egelhof - High heat resistant industrial oil burners "HTO-NA" - series
RAY Egelhof - High heat resistant industrial oil burners “HTO-NA” - series are used at all kinds of firing kilns, furnaces and post combustion chambers and are suitable for firing of liquid fuels such as LFO and Green fuels.
RAY Egelhof - “HTO-NA” - series burners are available in a capacity range from 120 kW (409 MBTU) - 5.400 kW (18,425 MBTU).
For more information, please get in contact with us - our team will be happy to support you!

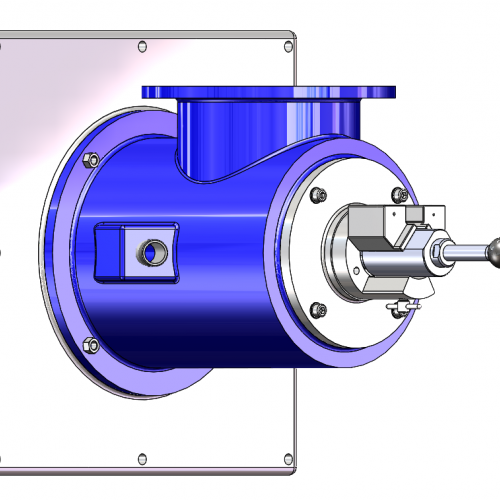

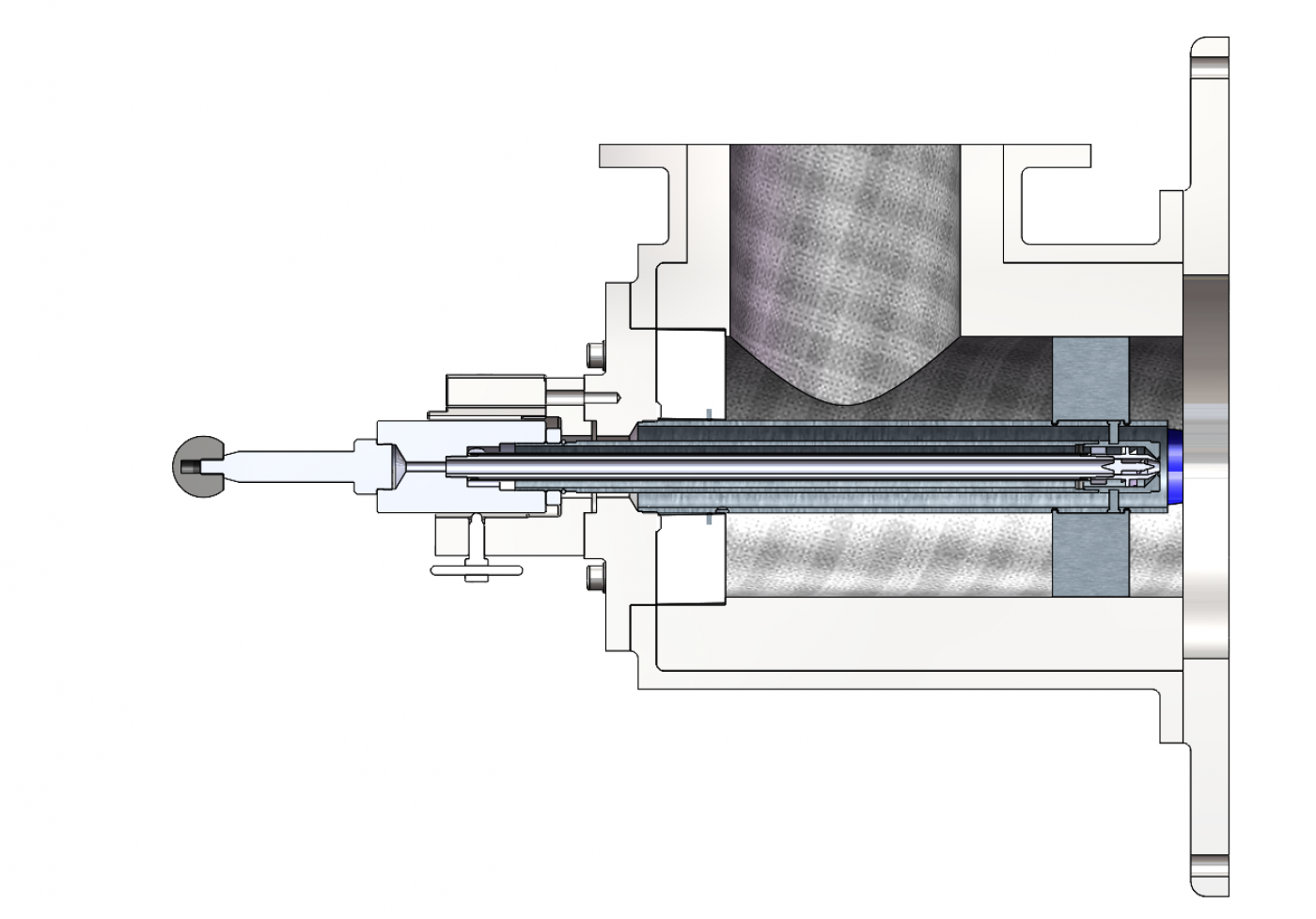

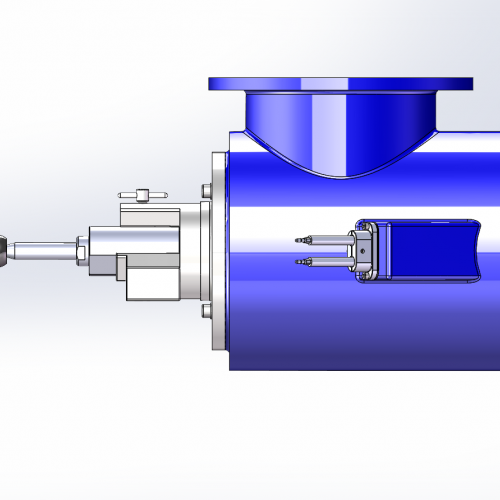

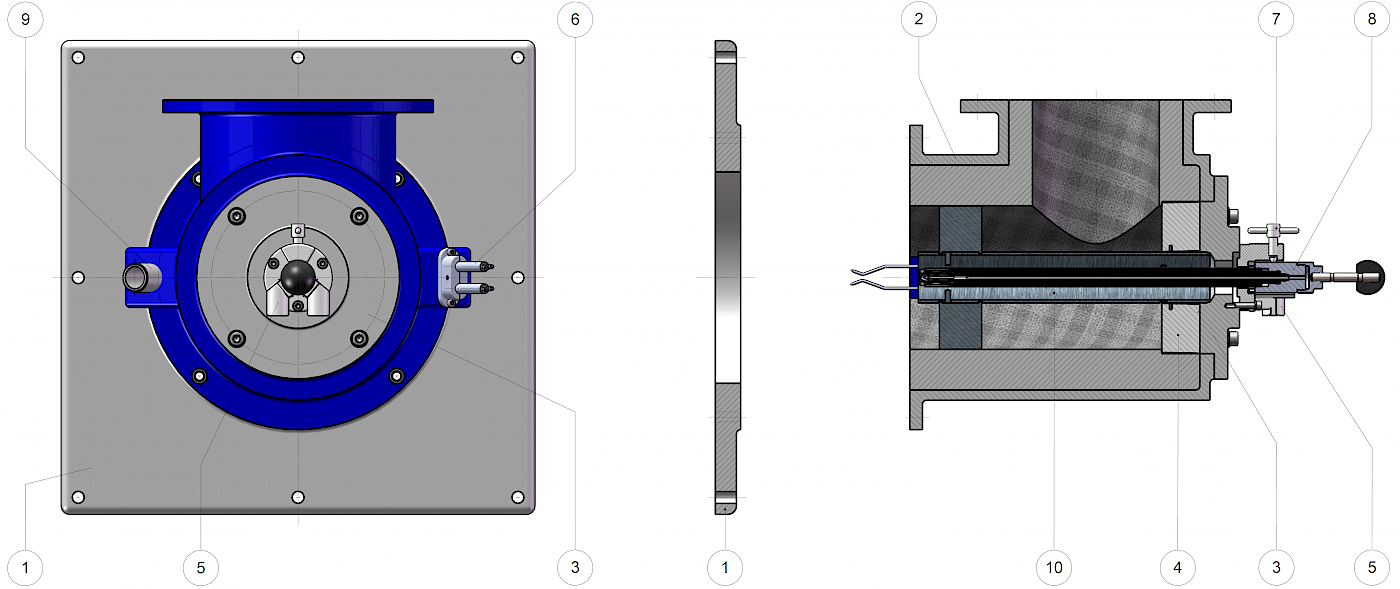

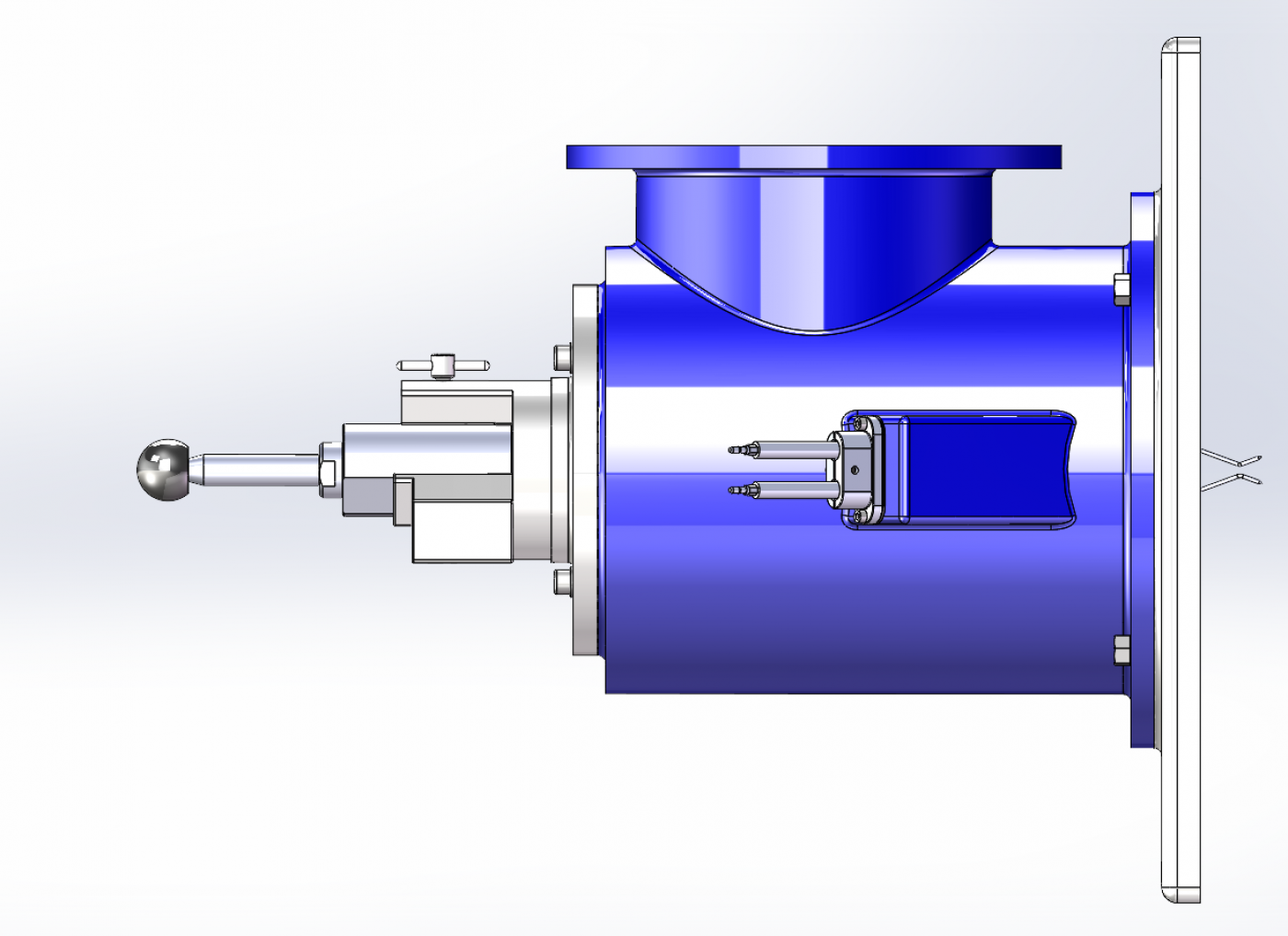

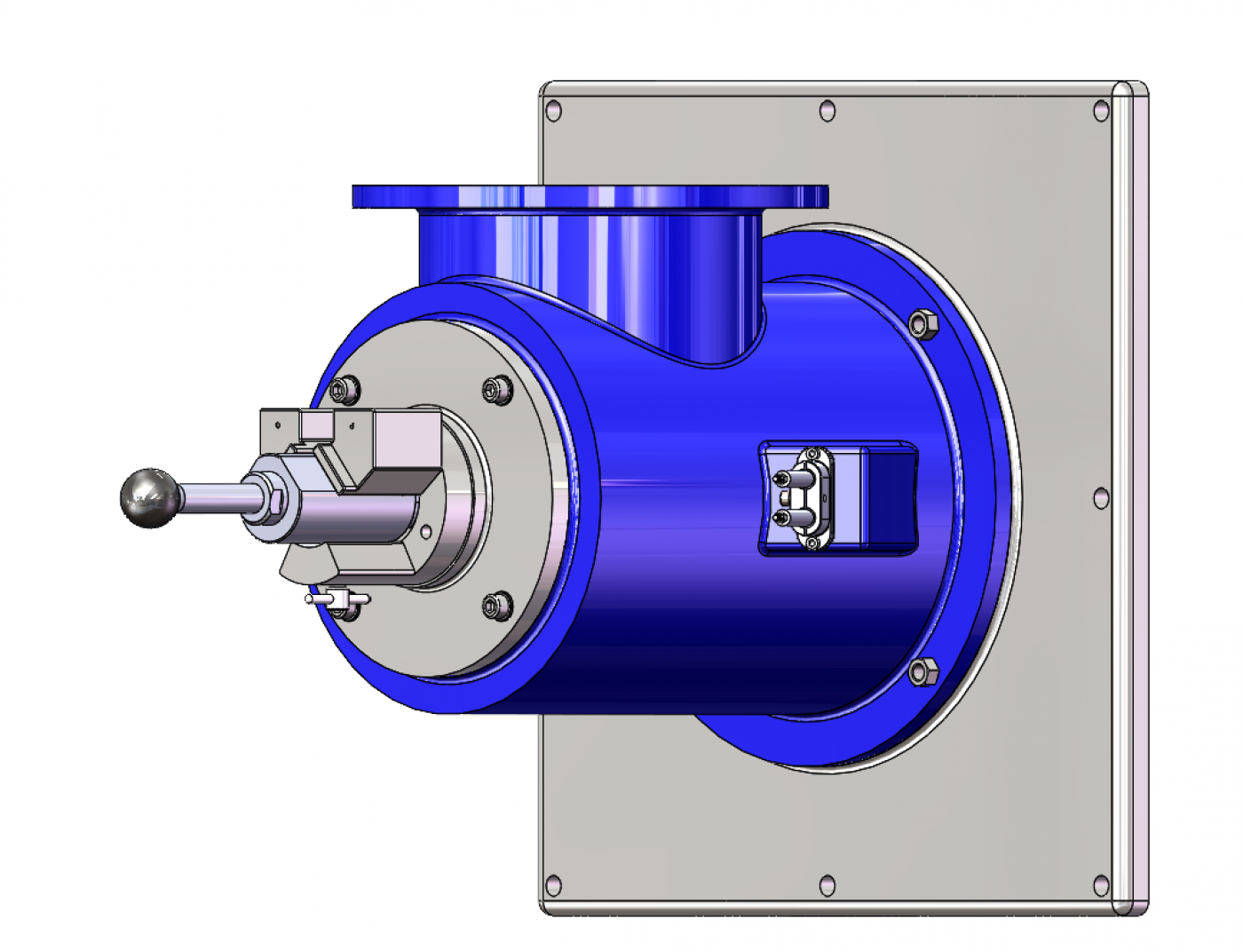

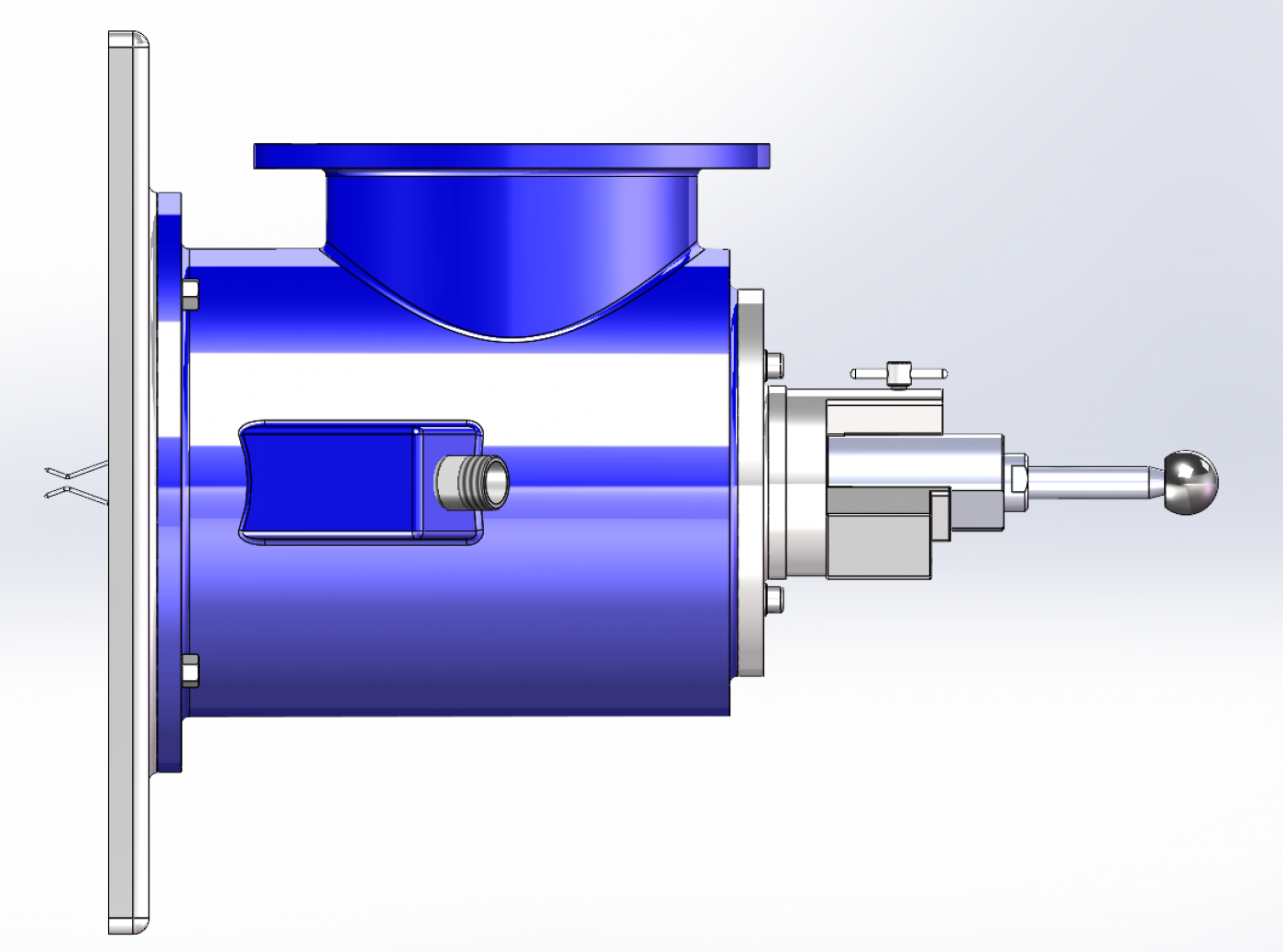

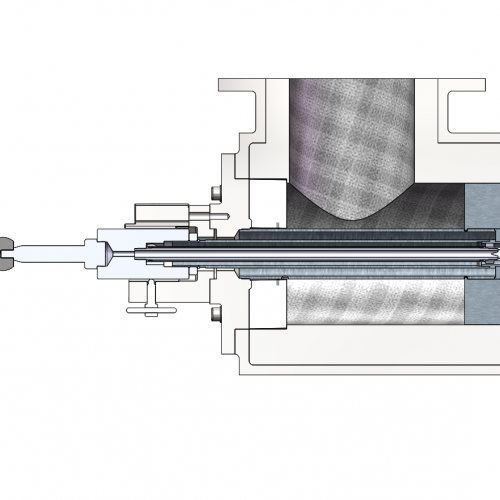

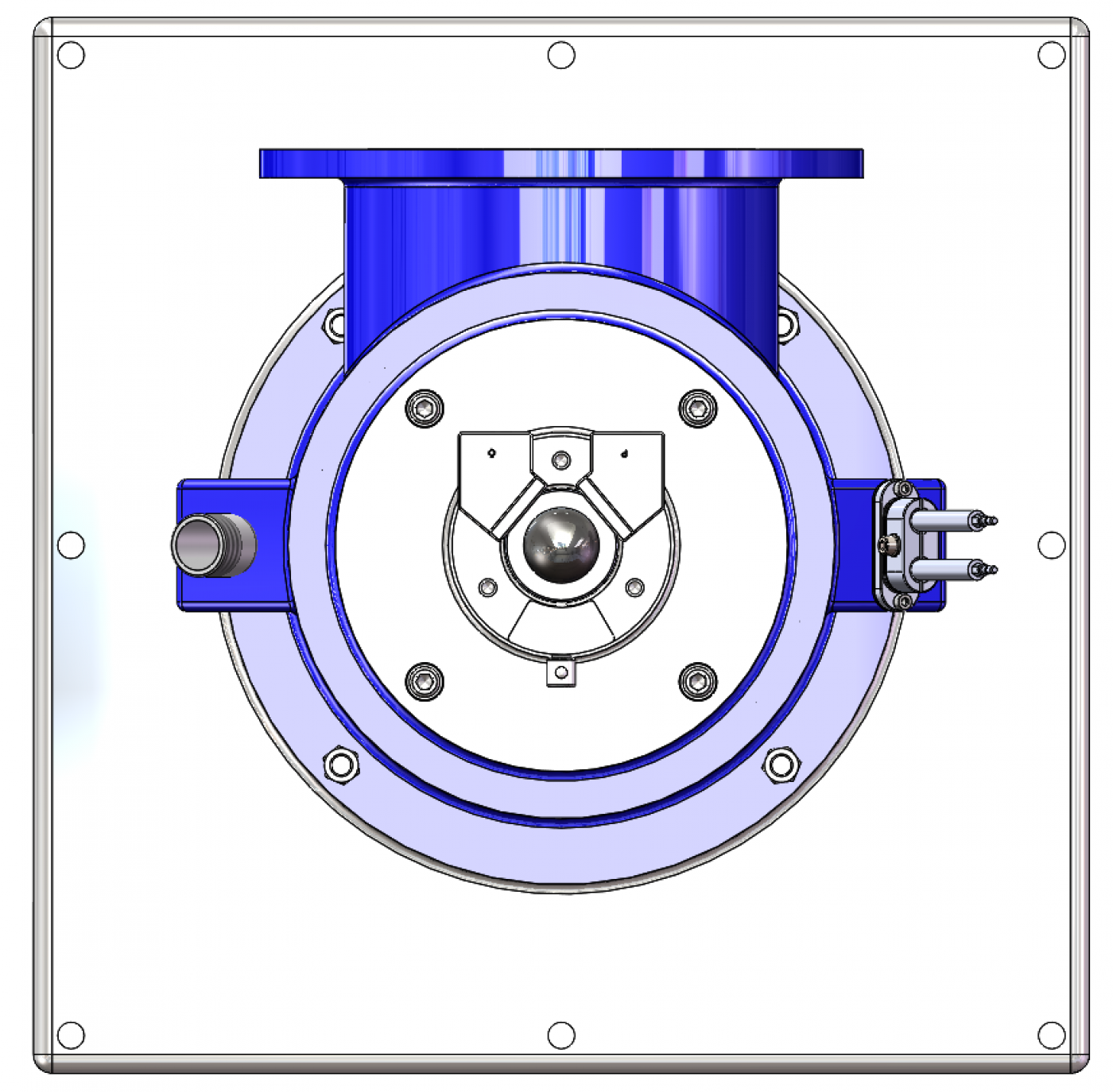

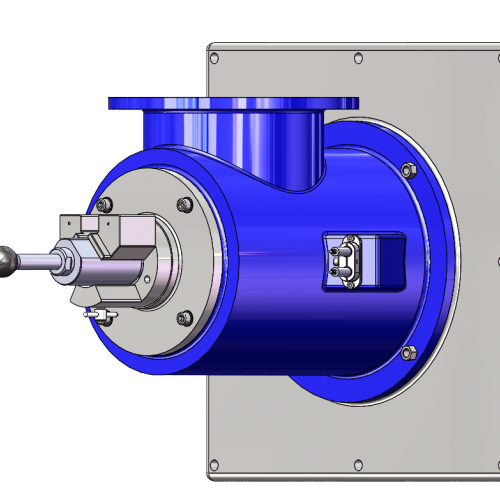

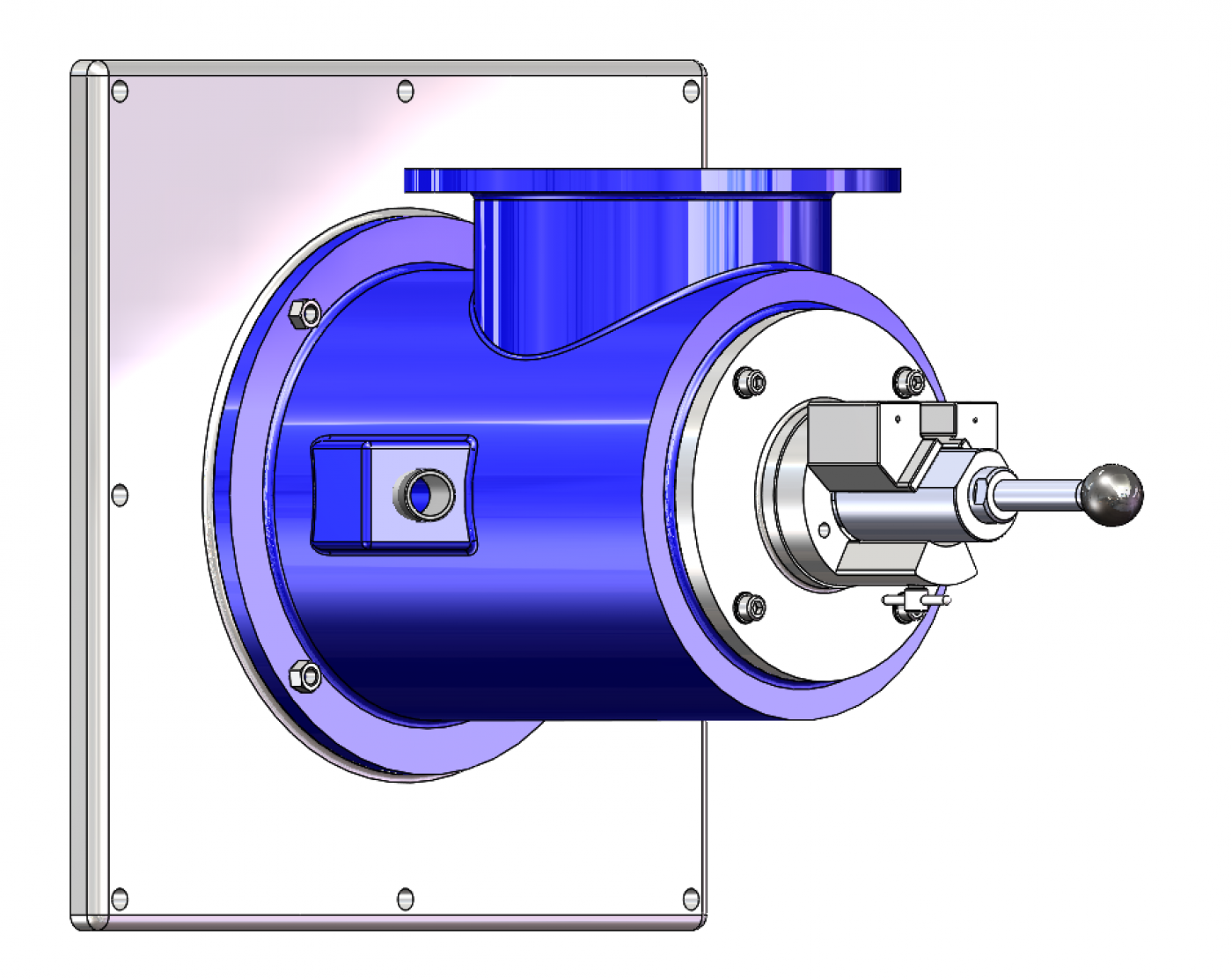

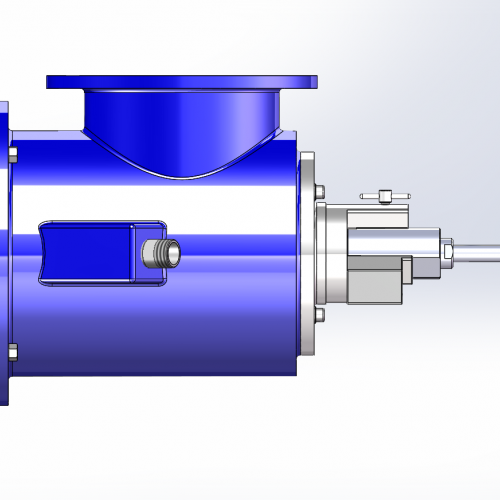

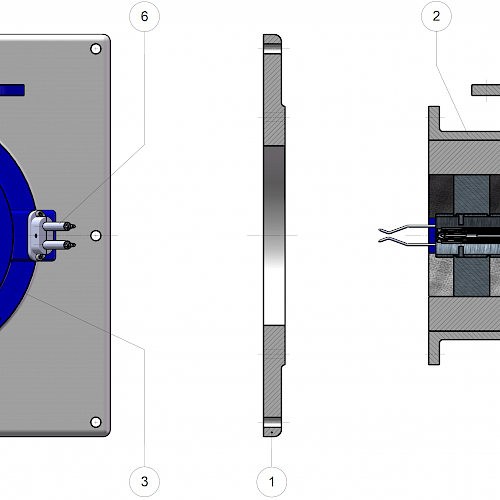

Design of the burner
You will find the matching picture in the slider on the right!
| 1. Burner plate | 2. Burner housing |
| 3. Insertion flange | 4. Insulating insert |
| 5. Quick-release clamp | 6. Ignition electrodes |
| 7. Tommy screw | 8. Nozzle block |
| 9. Flame sensor bracket | 10. Air guide tube with air baffles |
Operating range
Burner operating range in relation to combustion air temperature
| Burner type | 20°C | 100°C | 200°C | 300°C | 400°C | 500°C | 600°C | 700°C | 800°C |
Weight burner with burner plate |
| 100% | 75% | 65% | 55% | 45% | 40% | 35% | 30% | 27% | ||
|
kW MBTU |
kW MBTU |
kW MBTU |
kW MBTU |
kW MBTU |
kW MBTU |
kW MBTU |
kW MBTU |
kW MBTU |
kg | |
| HTO-NA 40 |
120 409 |
94 321 |
74 252 |
61 208 |
52 177 |
45 154 |
40 136 |
36 123 |
33 113 |
ca. 37 |
| HTO-NA 50 |
180 614 |
141 481 |
112 382 |
92 314 |
78 266 |
68 232 |
60 205 |
54 184 |
49 167 |
ca. 44 |
| HTO-NA 65 |
300 1,024 |
236 805 |
186 635 |
153 522 |
131 447 |
114 389 |
101 345 |
90 307 |
82 280 |
ca. 53 |
| HTO-NA 80 |
480 1,638 |
377 1,286 |
297 1,013 |
246 839 |
209 713 |
182 621 |
161 549 |
145 495 |
131 447 |
ca. 68 |
| HTO-NA 100 |
780 2,661 |
613 2,092 |
483 1,648 |
399 1,361 |
340 1,160 |
296 1,010 |
262 894 |
235 802 |
213 727 |
ca. 102 |
| HTO-NA 125 |
1.200 4,094 |
943 3,218 |
743 2,535 |
614 2,095 |
523 1,784 |
455 1,552 |
403 1,375 |
361 1,232 |
328 1,119 |
ca. 119 |
| HTO-NA 150 |
1.560 5,323 |
1.226 4,183 |
967 3,299 |
798 2,723 |
679 2,317 |
591 2,016 |
524 1,788 |
470 1,604 |
426 1,454 |
ca. 147 |
| HTO-NA 200 |
3.000 10,236 |
2.357 8,042 |
1.859 6,343 |
1.534 5,234 |
1.306 4,456 |
1.137 3,879 |
1.007 3,436 |
904 3,084 |
820 2,798 |
ca. 195 |
| HTO-NA 250 |
4.200 14,330 |
3.300 11,260 |
2.602 8,878 |
2.148 7,329 |
1.829 6,241 |
1.592 5,432 |
1.410 4,811 |
1.265 4,316 |
1.147 3,914 |
ca. 260 |
| HTO-NA 300 |
5.400 18,425 |
4.242 14,474 |
3.346 11,417 |
2.762 9,424 |
2.352 8,025 |
2.047 6,984 |
1.813 6,186 |
1.627 5,551 |
1.475 5,033 |
ca. 315 |
| HTO-NA 350 |
6.300 21,496 |
5.725 19,534 |
4.095 13,972 |
3.465 11,823 |
2.835 9,673 |
2.520 8,598 |
2.205 7,523 |
1.890 6,449 |
1.701 5,804 |
ca. 420 |
Note: Burner operating range refers to standard furnace and combustion air conditions.
