RAY Egelhof - Rotary cup atomizer "BGE" - series

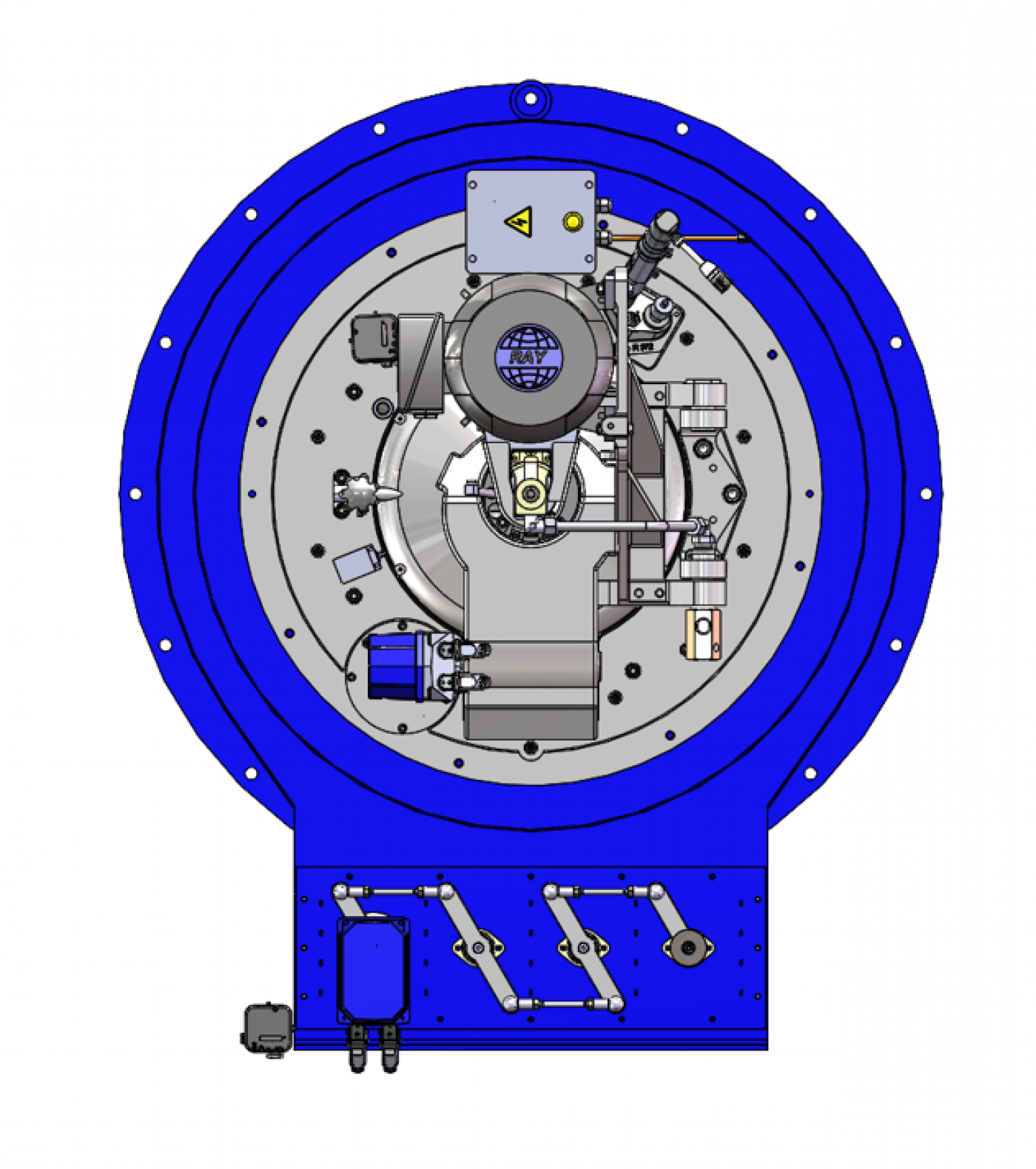

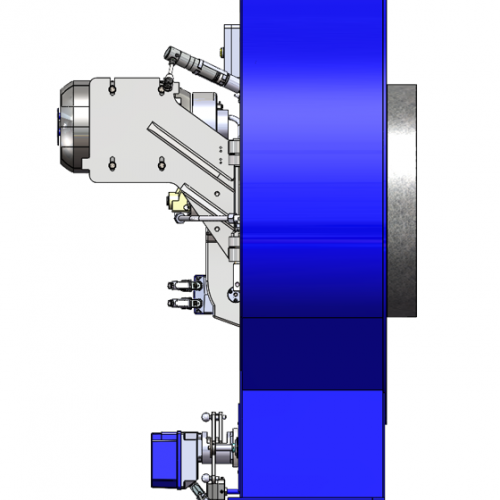

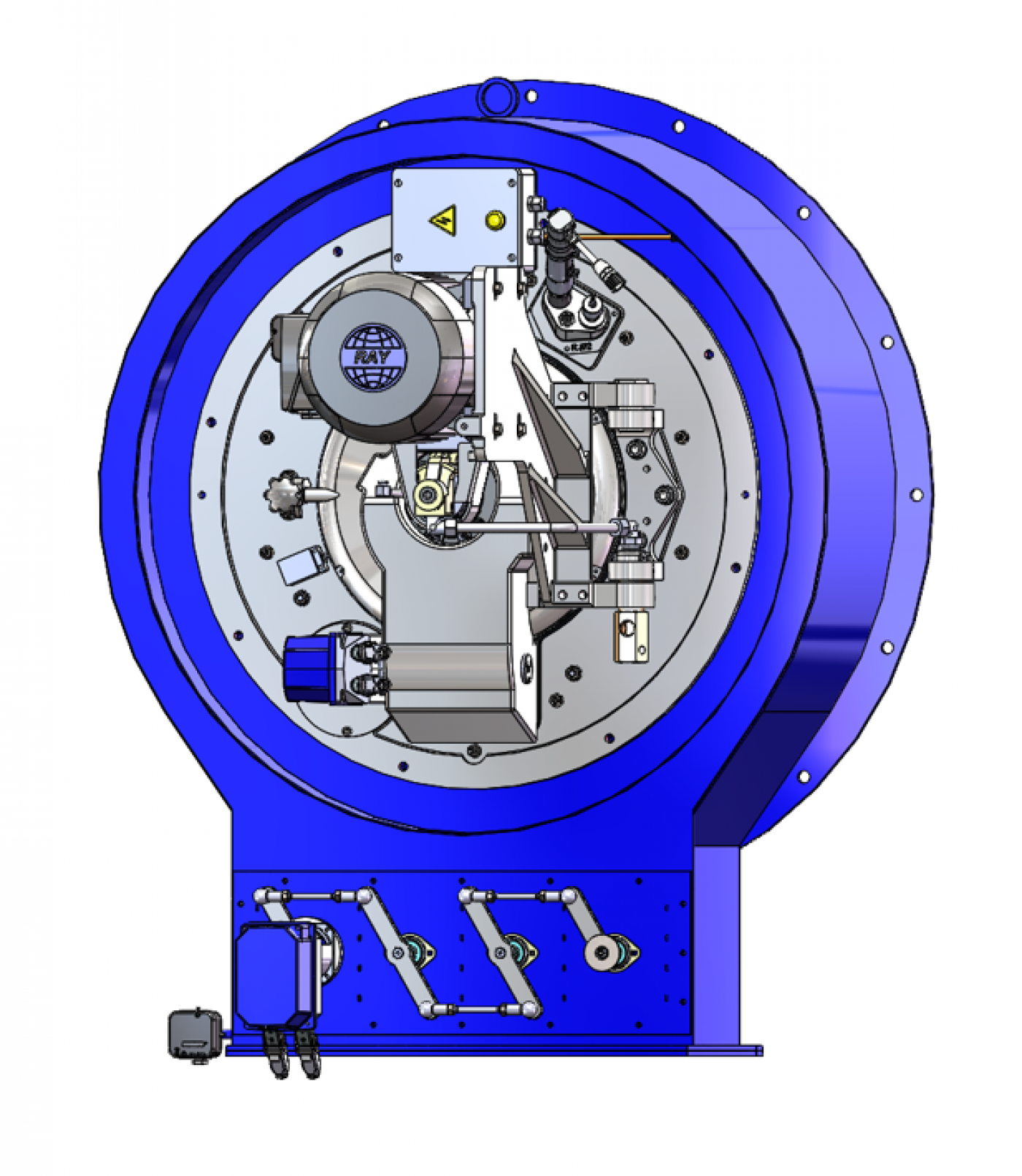

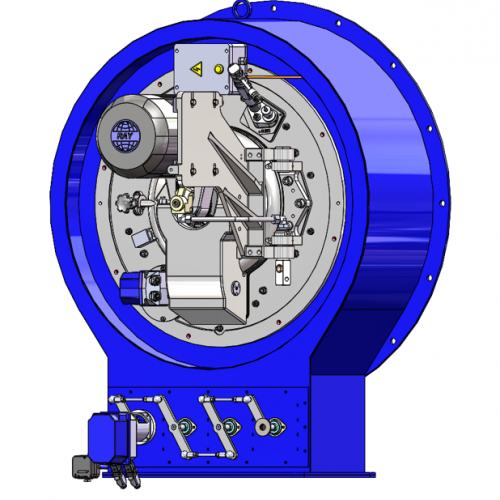

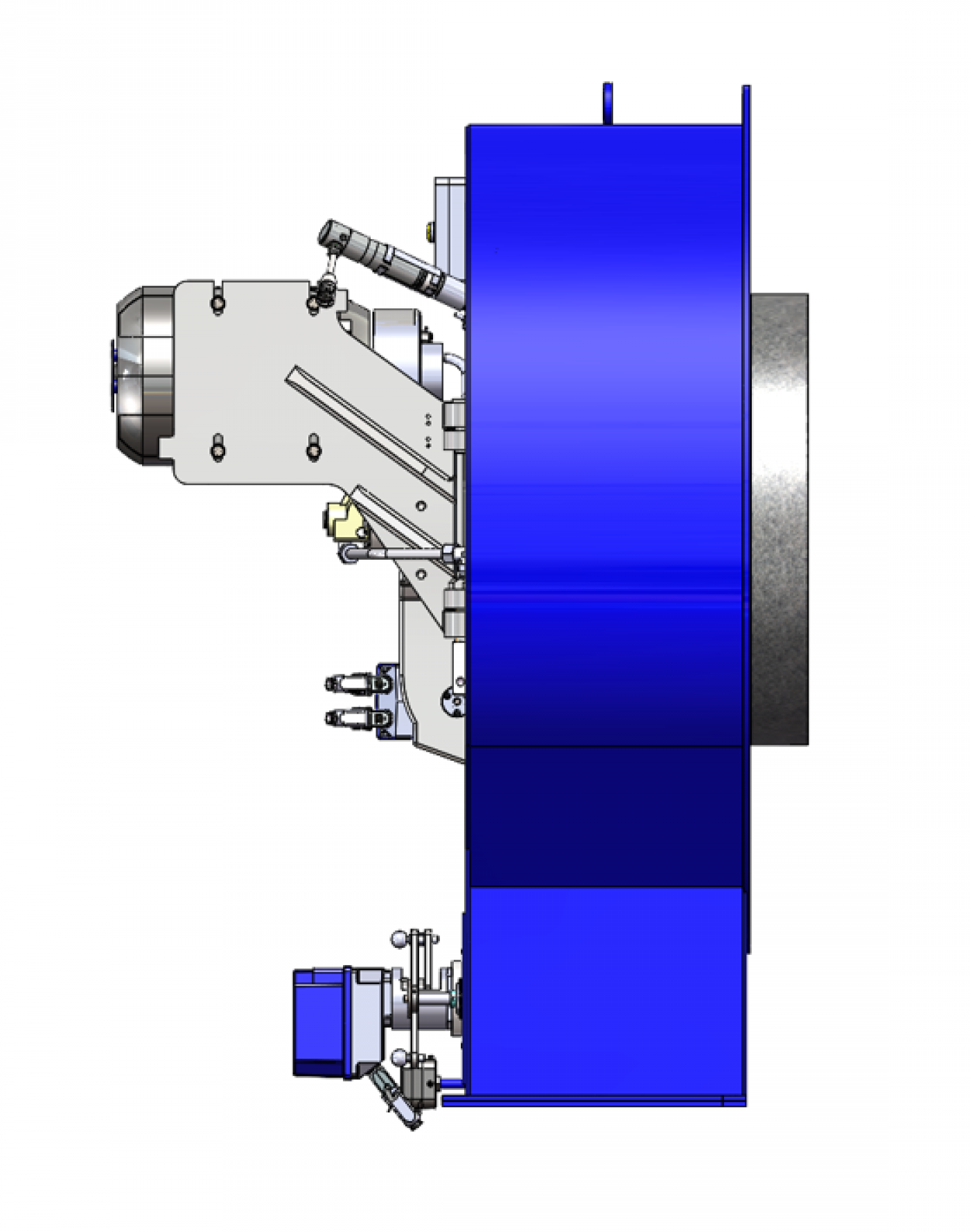

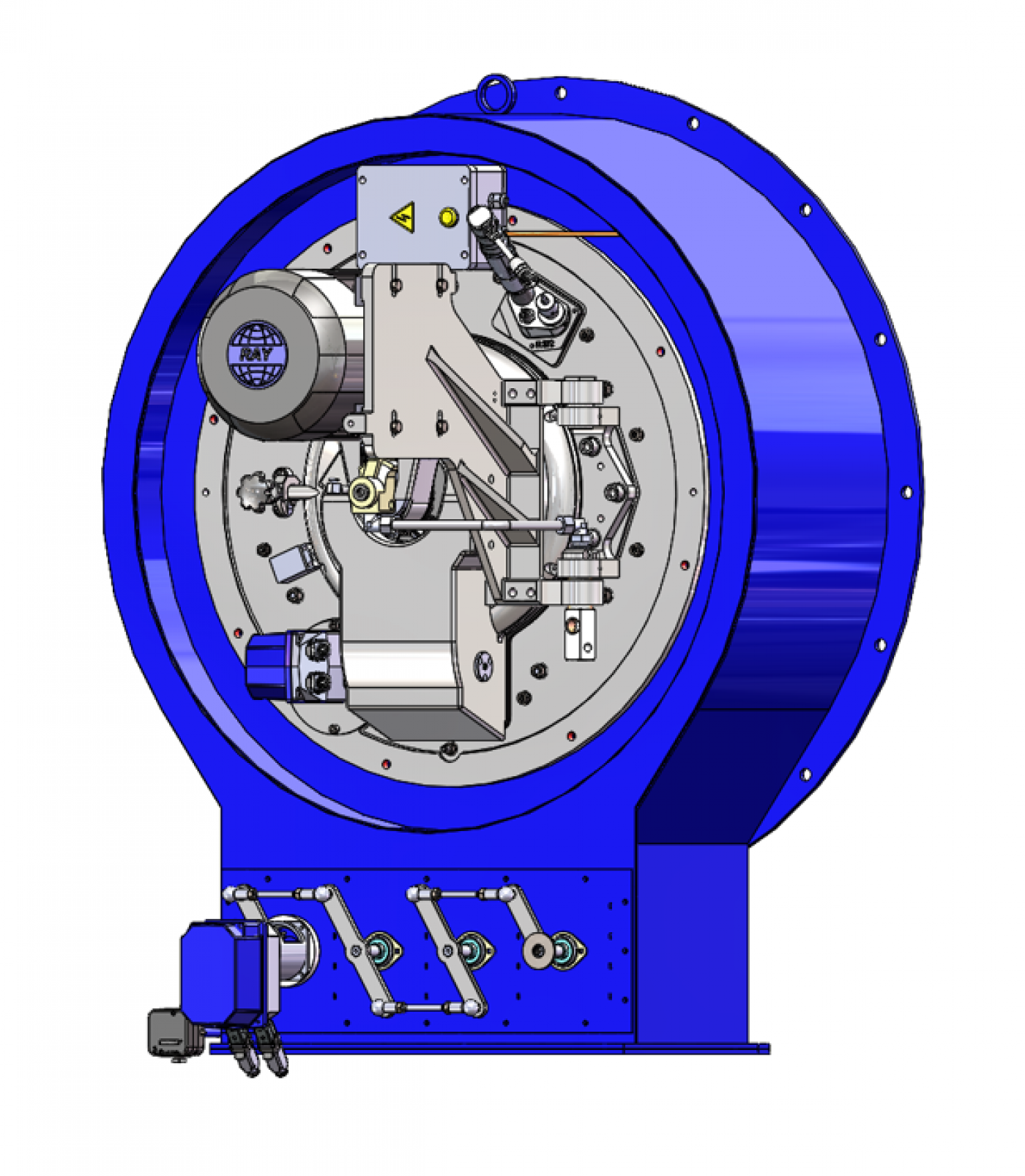

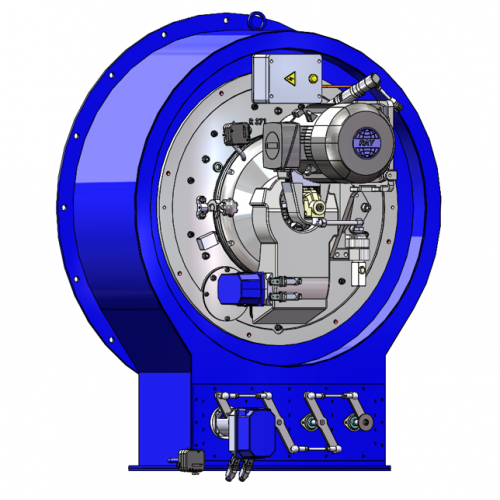

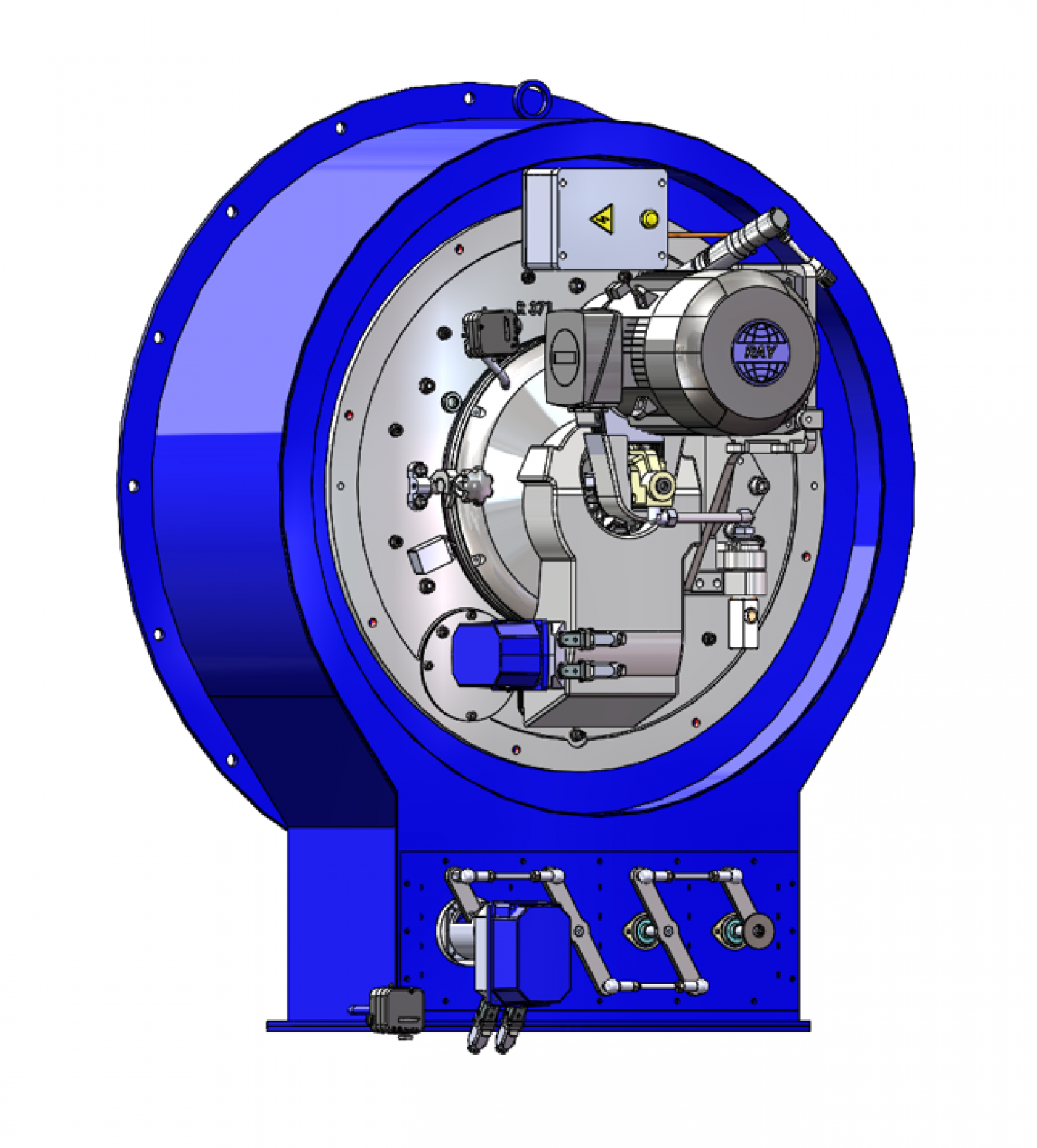

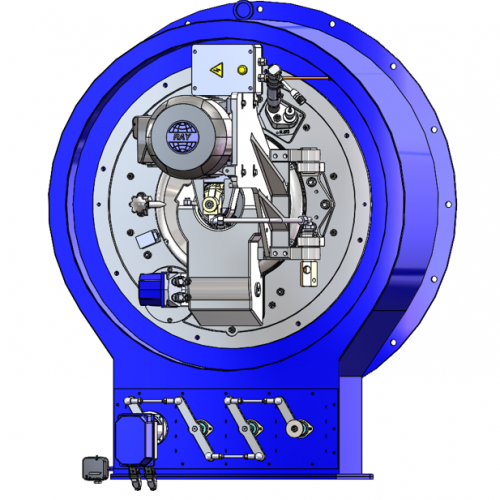

RAY Egelhof - Rotary cup atomizer “BGE” - series are industrial duobloc burners. They are built according to a modular principle and consist of the burner, a windbox, a separately installed combustion air fan, fuel supply line(s) and control system.
RAY Egelhof - Rotary cup atomizer “BGE” - series cover a capacity range from 349 kW (1,191 MBTU) - 46.510 kW (158,692 MBTU).
RAY Egelhof - Rotary cup atomizer “BGE” - series are very versatile and can use gas oil, LFO, MFO, HFO and green fuels for combustion. Separate or parallel combustion of liquid fuels is possible.
The digital combustion management system that is used as standard (other options are available on request), simplifies the operation, monitoring and maintenance of the burner.
Due to the modular construction of the burner and the flexibility it provides, it can be used for a wide range of standard as well as special applications. Individual project planning, a short planning phase, and high reliability are guaranteed.
For further information, please contact us - our team will be happy to support you!
Key data: RAY Egelhof - Rotary cup atomizer "BGE" - series
| Applications | LTHW-boilers, HTHW-boilers, Thermal fluid heaters, Steam-boilers, Heat generators |
| Fuels | Liquid fuels (especially Gas oil, LFO, MFO, HFO, Residual oils and green fuels, liquefied fats, alcohols) separately or simultaneously |
| Sizes | 15 sizes |
| Operating range | 349 bis 46.510 kW |
| Air preheating | up to 250°C |
| Turndown | up to 1:8 |
Key dimensions at a glance (for download)

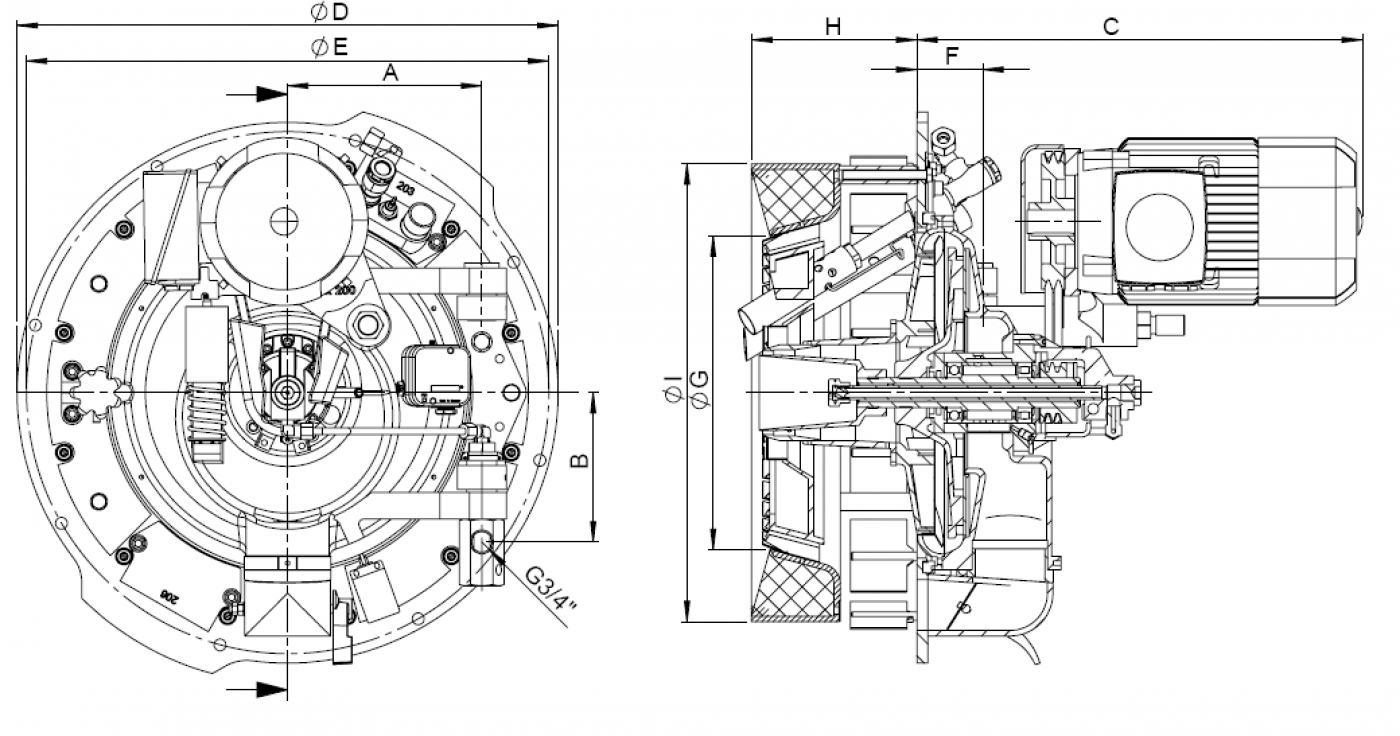

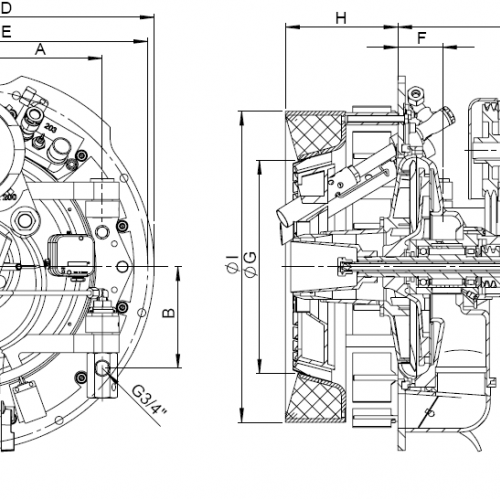

Burner types BGE 150 - 700 Cross section

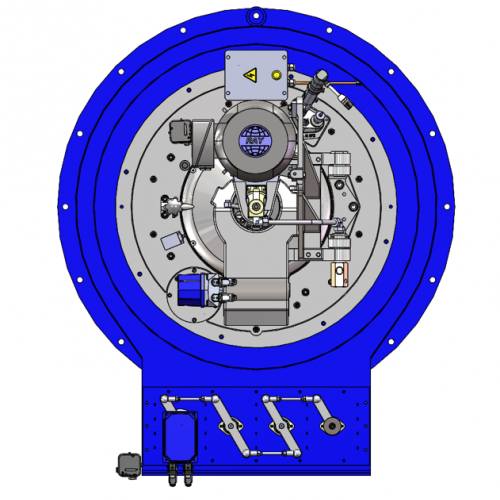

Burner types BGE 150 - 700 Front view

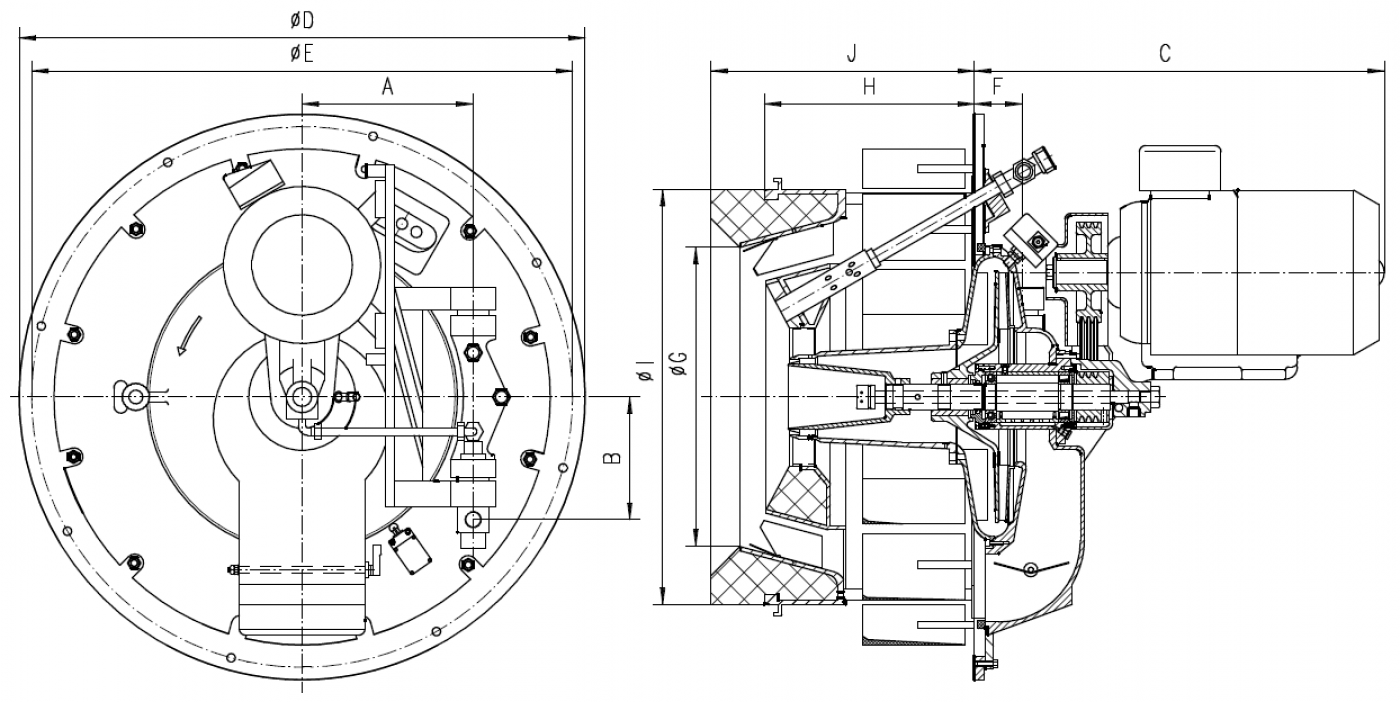

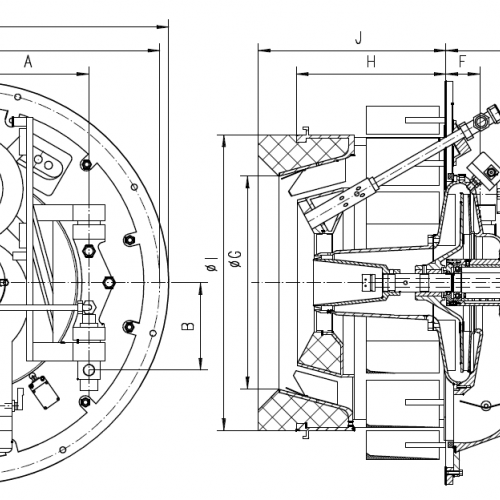

Burner types BGE 800 - 1500 Cross section
Burner types BGE 800 - 1500 Front view

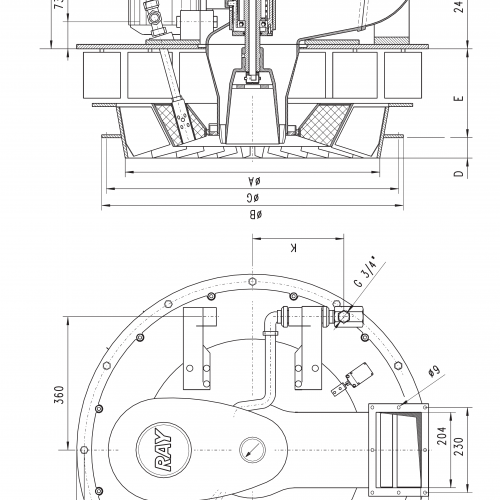

Burner types BGE 2000 - 3500 Cross section
Burner types BGE 2000 - 3500 Front view
Burner rating /-weight and -dimensions
| Model | Rating min. | Rating max. | Windbox with air damper unit Type |
Windbox with air damper unit Type |
Weight burner with windbox | ØA | ØB | ØC | H | I |
| kW MBTU | kW MBTU | DLV | SLV | kg | mm | mm | mm | mm | mm | |
| BGE 150 |
349 1,191 |
1.744 5,951 |
35 | 15 | ca. 220 | 638 | 540 | 370 | 91 | 195 |
| BGE 250 |
465 1,587 |
2.907 9,919 |
35 | 25 | ca. 220 | 638 | 540 | 370 | 91 | 195 |
| BGE 350 |
523 1,784 |
4.070 13,887 |
35 | 35 | ca. 235 | 638 | 540 | 370 | 91 | 195 |
| BGE 500 |
756 2,579 |
5.814 19,837 |
70 | 50 | ca. 365 | 750 | 660 | 445 | 105 | 254 |
| BGE 600 |
872 2,975 |
6.977 23,806 |
70 | 60 | ca. 350 | 750 | 660 | 460 | 105 | 254 |
| BGE 700 |
1.047 3,572 |
8.140 27,774 |
70 | 70 | ca. 350 | 750 | 660 | 460 | 105 | 254 |
| BGE 800 |
1.163 3,968 |
9.302 31,738 |
100 | 80 | ca. 500 | 900 | 660 | 476 | 274,5 | 419 |
| BGE 1000 |
1.453 4,958 |
11.628 39,675 |
100 | 100 | ca. 515 | 900 | 660 | 498 | 274,5 | 419 |
| BGE 1250 |
1.860 6,346 |
14.535 49,593 |
125 | 125 | ca. 555 | 900 | 660 | 498 | 274,5 | 419 |
| BGE 1500 |
2.326 7,936 |
18.604 63,477 |
150 | -/- | ca. 580 | 900 | 660 | 538 | 274,5 | 419 |
| BGE 2000 |
2.907 9,919 |
23.256 79,349 |
200 | -/- | ca. 720 | |||||
| BGE 2500 |
3.488 11,901 |
29.070 99,187 |
250 | -/- | ca. 750 | |||||
| BGE 3000 |
4.360 14,876 |
34.884 119,024 |
300 | -/- | ca. 785 | |||||
| BGE 3500 |
5.116 17,456 |
40.700 138,868 |
350 | -/- | ca. 790 | |||||
| BGE 4000 |
5.815 19,841 |
46.510 158,692 |
400 | -/- | ca. 805 |
General product features
- Modular principle
- Robust construction
- Durability
- Reliability
- Maintenance friendly
